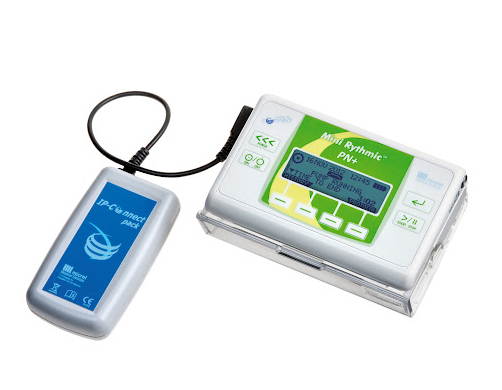

PN+ Pump

Reference

KP5.04.177.4 (with UK Plug) KP5.04.176.4 (European plug)

Delivery modes

• Continuous • Volume / Time or Volume / Rate

• Auto ramp • Intermittent 25 t

Flow rate and Accuracy

•

s eps

0.1 to 400ml/hr (configurable maximum rate) at +/- 5%

Programming units

ml/mg/μg

Concentration

0.1 to 99.9mg/ml and 0.1 to 99.9 μg/ml

Volume to infuse

1 to 9999ml

Programmable infusion time

10 min to 199h50min

Auto ramp, up & down time

1 min to 9h50min

Special functions

• Early taper down • Delayed start (up to 24 hours) • Automatic priming through the pump • Security code against stopping infusion

Therapy monitoring History, infusion graph / printout and PC download

‘Ready to connect’ to www.micrelcare.net for therapy monitoring through the web. History ‘Plug & Play’ printout and downloads or via MicrelCareTM

KVO

0.1 to 20.0 ml/h

Automatic restart after occlusion release

Yes

Occlusion limits

3 levels: low= 7psi (0.5 bar), medium=13psi (0.9bar), high=18.8psi (1.3 bar)

Safety features

Air in line eliminator, free flow protection according to IEC 60601-2-24

Alarms & warnings

Upstream and Downstream Occlusion, near end (in time or volume) and end of infusion, low and depleted battery, open mechanism, KVO, incorrect programmed rate, preventive maintenance warning

Air detector

Yes and adjustable: air bubble size 0.1ml; 0.5ml;2ml; Off

Power supply and autonomy

9V alkaline : 10 hours at 150ml/hr - Battery pack :17 hours at 300 ml/hr -Rechargeable in 3h

Weight with battery

300g

Dimensions

75 mm x 130 mm x 46 mm
